YXZ1000R JTE Billet 39mm Fuel Sending Unit & AEM 340LPH Pump Kit

A YXZ Addicts fuel-system package combining a JTE Performance billet 39 mm fuel sending unit with an AEM E85-compatible 340 LPH in-tank fuel pump.

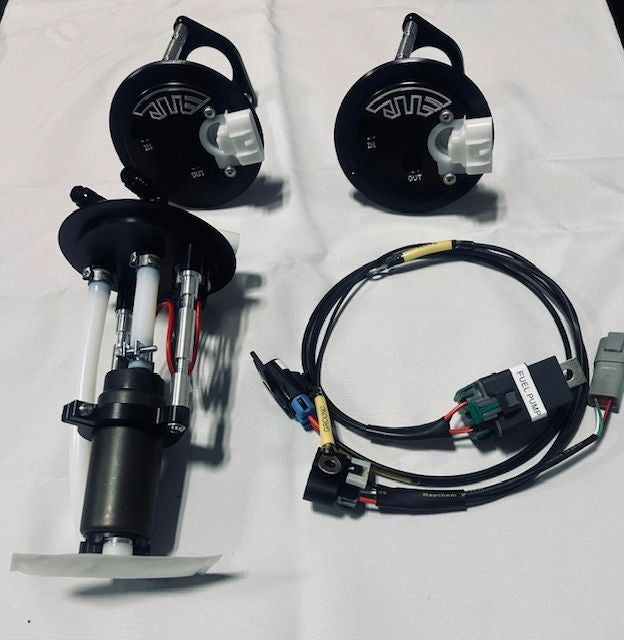

Kit contents

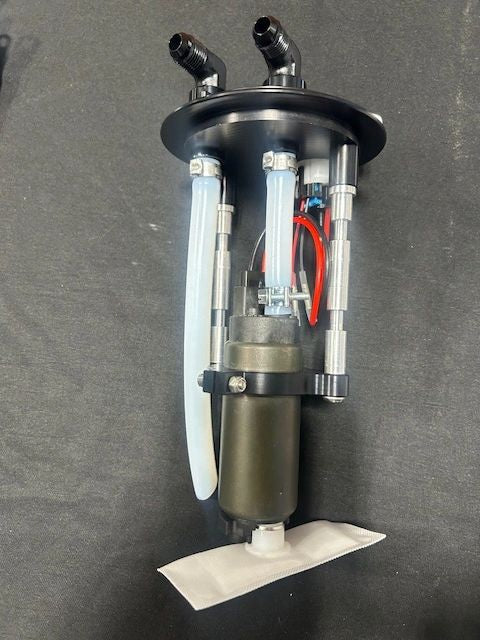

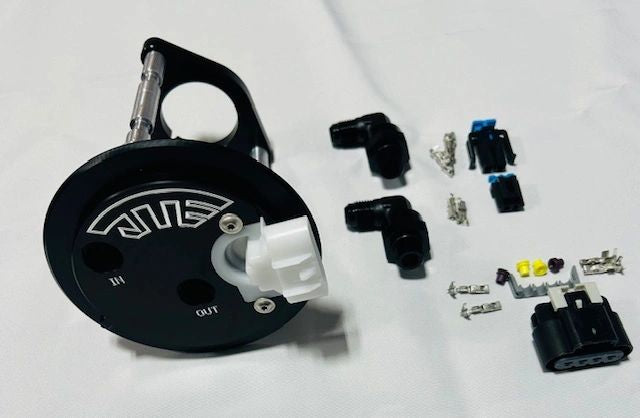

• JTE billet YXZ1000R fuel sending unit with 39 mm pump clamp
• Two JTE -6AN 90-degree swivel feed and return fittings
• JTE 3/8-inch PTFE pump feed and return hose kit with stainless crimp clamps
• JTE plug-and-play high-current fuel-pump wiring harness

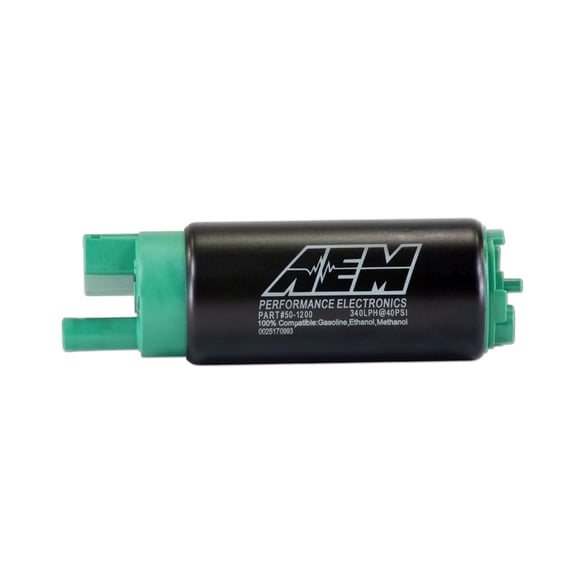

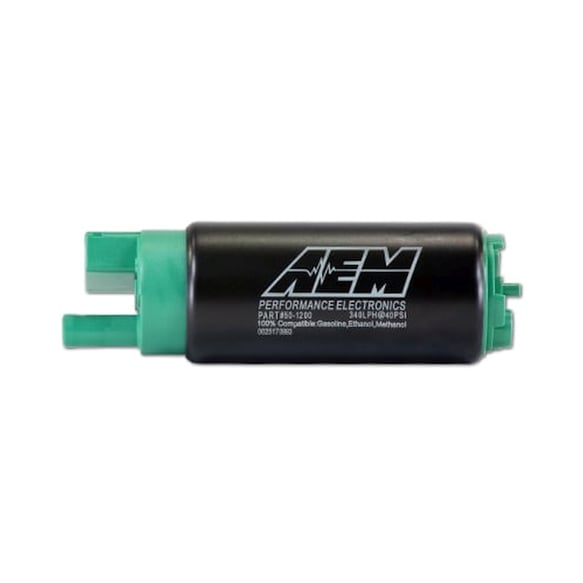

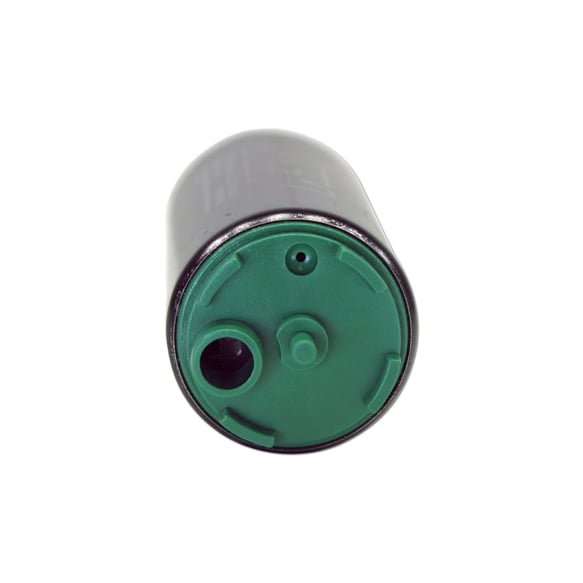

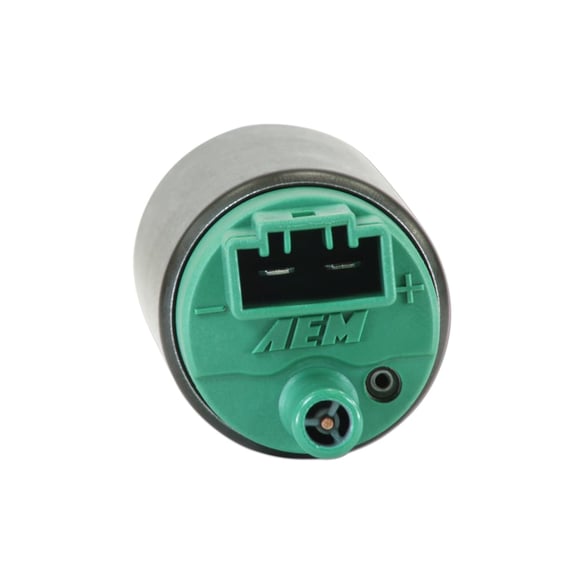

• AEM 50-1200 E85-compatible 340 LPH in-tank fuel pump
• -4AN reducer for Injector Dynamics fuel-system applications

Key component details

• JTE sending-unit ports are female -6 ORB and support a return-style fuel-system conversion.
• The JTE electrical connector is rated for up to 30 amps.

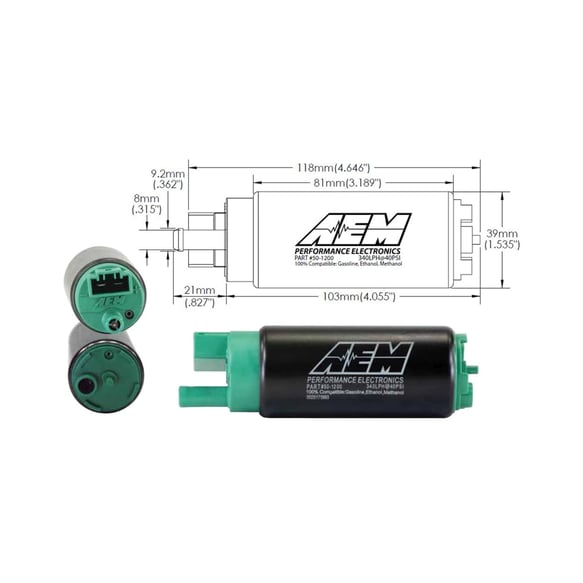

• The AEM 50-1200 pump has a 39 mm body and is tested by AEM to flow 340 LPH at 40 PSI.
• AEM lists the pump for gasoline, ethanol fuels through E100, and methanol fuels through M100.

Important: Fuel-system modification can create a serious fire risk. Professional installation, correct wiring and circuit protection, fuel-compatible hose and fittings, and a complete leak test are required.
